STACK WATER HEATERS WITH DIRECT HEATING
 |

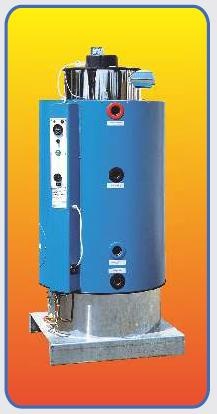

STATIONARY GAS STACK WATER HEATERS WITH INTENSIVE HEATING, CLOSED COMBUSTOR AND FORCED FLUE GAS INSTALLATION
|
|
The guarantee of the tank is 3 years. Water heaters are produced according to standards and regulations of EU and fulfil all conditions for getting the mark CE. The producer has got the certificate ISO 9002.
Water heaters are installed either in spaces with insufficient cubage of the room or in places, where is no chimney and chimney construction is too economically or technically demanding. It is possible to use them in households, apartment hotels, restaurants, hairdresser´s, sport objects etc. |
|
|
|
| Type of water heater | Tank volume (l) |
Rated power (kW) |
Rated capacity (kW) |
Time of heat t = 25°C (min) |
Constant power at t = 25°C (l / hod) |
Earth gas consumption (m3 / h) |
Propane consumption (kg / h) |
| Q7-220-VENT-C | 220 | 28,5 | 25,8 | 16 | 887 | 3,10 | 2,30 |
| Q7-300-VENT-C | 300 | 31 | 28 | 20 | 963 | 3,10 | 2,30 |
| Q7-400-VENT-C | 400 | 31 | 28 | 26 | 963 | 3,10 | 2,30 |
Specifications in charts are only for your orientation, real numbers are dependent on specific conditions. Presented numbers are connected to heating without water withdrawal. Temperature limit of the regulation thermostat is ± 3 °C against the temperature setting by the temperature controller. |

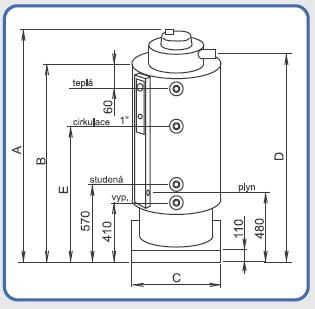

| Type of water heater | Size A (mm) |
Size B (mm) |
Size C (mm) |
Size D (mm) |
Size E (mm) |
Water connection input/output | Gas connection | Diameter of flue gas installation spalin (mm) |
Weight (kg) |
| Q7-220-VENT-C | 1660 | 1365 | 720 | 1495 | 970 | 5/4" | 1/2" | 100 / 60 | 202 |
| Q7-300-VENT-C | 2015 | 1720 | 720 | 1840 | 970 | 5/4" | 1/2" | 100 / 60 | 245 |
| Q7-400-VENT-C | 2365 | 2070 | 720 | 2190 | 1135 | 5/4" | 1/2" | 100 / 60 | 286 |
| Maximal input pressure of water: Connecting pressure of gas: Extent of service thermostat: Covering of electric part: Covering of electric part: Capacity of electric part: |
0,5 MPa 1,8 - 2,5 kPa for earth 3,0 kPa for propane 40 - 80 °C IP 20 230 V / 50 Hz 62 W |

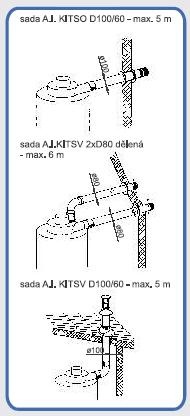

Location: is possible in all rooms without any special size or ventilation, must be done according to regulations TPG 704 01. The outfall of the flue gas installation on the outside wall (facade) must be realized according to technical regulations TPG 800 01. |
 |
 |
