STACK WATER HEATERS WITH DIRECT HEATING

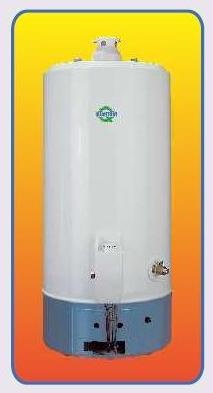

STATIONARY GAS STACK WATER HEATER WITHOUT THE FLUE GAS INSTALLATION

The guarantee of the tank is 4 years.

The water heater is produced according to standards and regulations of EU and fulfils all conditions for getting the mark CE. The producer has got the certificate ISO 9001.

The water heater can be installed only into spaces with sufficient cubage of the room. The flue gas installation cannot be realized there and chimney construction is not possible or would be very expensive.

Type of water heater

Tank volume
(l)

Rated power
(kW)

Rated capacity
(kW)

Time of heat
Δt = 25°C
(min)

Constant power at Δt = 25°C
(l / hod)

Earth gas consumption
(m³ / h)

Q7-30-NORSO/E

115

1,7

118

0,21

Specifications in charts are only for your orientation, real numbers are dependent on specific conditions. Presented numbers are connected to heating without water withdrawal. Temperature limit of the regulation thermostat is ± 3 °C against the temperature setting by the temperature controller.

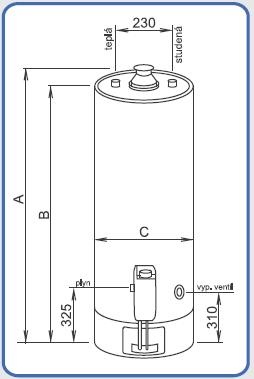

Type of water heater
ohřívače

Size A
(mm)

Size B
(mm)

Size C
(mm)

Water connection input/output

Gas connection

Weight
(kg)

Q7-30-NORSO/E

1170

1040

495

3/4"

1/2"

Maximal input pressure of water:                             0,5 MPa
Connecting pressure of gas:                                     1,8 - 2,5 kPa for earth gas
Extent of operational thermostat:                              40 - 70 °C

If there is a circulation in hot water distribution, it can be connected to output valve or to cold water input.

Location: must be done according to regulations TPG 704 01
Notice: This appliance cannot be located into the social rooms (bathrooms, restrooms, cloak-rooms etc.) and into sleeping rooms.

The water heater without the flue gas installation can operate only with earth gas!
