STACK WATER HEATERS WITH DIRECT HEATING

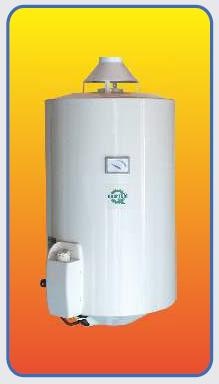

HANGING GAS STACK WATER HEATERS WITH THE FLUE GAS INSTALLATION

The guarantee of the tank is 4 years.

Water heaters are produced according to standards and regulations of EU and fulfil all conditions for getting the mark CE. The producer has got the certificate ISO 9001.

Water heaters are installed in households, apartment hotels, restaurants, hairdresser´s, sport objects etc. Connectors for input of cold water, output of hot water and gas inlet are situated in bottom part of the water heater, which makes connection to water and gas distribution easier.

Type of water heater

Tank volume
(l)

Rated power
(kW)

Rated capacity
(kW)

Time of heat
t = 25°C (min)

Constant power at
t = 25°C
(l / hod)

Earth gas consumption
(m3 / h)

Propane consumption
(kg / h)

Q7-13-KMZ/E	47	3,5	3,0	27	103	0,37	0,27
Q7-20-KMZ/E	75	5,2	4,4	30	151	0,55	0,41
Q7-25-KMZ/E	95	5,2	4,4	38	151	0,55	0,41
Q7-30-KMZ/E	115	5,2	4,4	46	151	0,55	0,41

Specifications in charts are only for your orientation, real numbers are dependent on specific conditions.
Presented numbers are connected to heating without water withdrawal. Temperature limit of the regulation thermostat is ± 3 °C against the temperature setting by the temperature controller.

Type of water heater

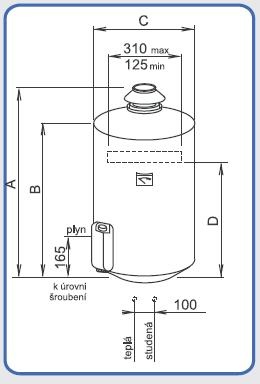

Size A
(mm)

Size B
(mm)

Size C
(mm)

Size D
(mm)

Water connection input/output

Gas connection

Diameter of flue gas installation (mm)

Weight (kg)

Q7-13-KMZ/E	652	512	450	373	1/2"	1/2"	81	22
Q7-20-KMZ/E	865	725	450	586	1/2"	1/2"	81	28
Q7-25-KMZ/E	1012	872	450	739	1/2"	1/2"	81	32
Q7-30-KMZ/E	1171	1031	450	892	1/2"	1/2"	81	43

Maximal input pressure of water:                              0,5 MPa
Connecting pressure of gas:                                    1,8 - 2,5 kPa for earth gas
                                                                                       3,0 kPa for propane
Extent of operational thermostat:                              40 - 70 °C

If there is a circulation in hot water distribution, it can be connected to output valve or to cold water input.

Location: : must be done according to regulations TPG 704 01 and TD 800 02.
Flue gas installation: must be solved according to standards ČSN 73 4201 / November 2002.
Notice: In case of common location of water heaters and boilers in one room, air supply to the boiler room must be evaluated in relation to total installed power!
The console for water heater suspension is a part of supply.

It is possible to deliver also a set with the sensor for backward tension of flue gases.

Water heaters are supplied with standard earth gas fitting.
You should specify the propane version in your order.
