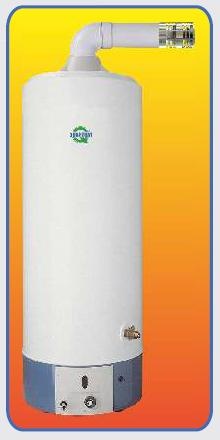

STATIONARY GAS STACK WATER HEATERS WITH THE CLOSED COMBUSTOR AND NATURAL FLUE GAS INSTALLATION
|
|
The guarantee of the tank is 4 years.
Water heaters are produced according to standards and regulations of EU and fulfil all conditions for getting the mark CE. The producer has got the certificate ISO 9001.
Water heaters are installed either in spaces with insufficient cubage of the room or in places, where is no chimney and chimney construction is too economically or technically demanding. It is possible to use them in households, apartment hotels, restaurants, hairdresser´s, sport objects etc. |
|
Type of water heater | Tank volume (l) |
Rated power (kW) |
Rated capacity (kW) |
Time of heat Δt = 25°C (min) |
Constant power at Δt = 25°C (l / hod) |
Earth gas consumption (m³ / h) |
Propane consumption (kg / h) |
Q7-30-NODS/E | 115 | 4,3 | 3,6 | 56 | 124 | 0,46 | 0,33 |
Q7-40-NODS/E | 155 | 4,7 | 4,0 | 68 | 138 | 0,50 | 0,37 |
Q7-50-NODS/E | 195 | 5,3 | 4,5 | 76 | 155 | 0,55 | 0,41 |
Specifications in charts are only for your orientation, real numbers are dependent on specific conditions. Presented numbers are connected to heating without water withdrawal. Temperature limit of the regulation thermostat is ± 3 °C against the temperature setting by the temperature controller. |

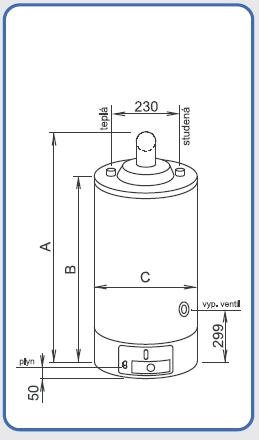

Type of water heater |
Size A (mm) |
Size B (mm) |
Size C (mm) |
Water connection input/output | Gas connection |
Diameter of flue gas installation (mm) |
Weight (kg) |
Q7-30-NODS/E | 1300 | 1070 | 495 | 3/4" | 1/2" | 100 / 60 | 44 |
Q7-40-NODS/E | 1550 | 1320 | 495 | 3/4" | 1/2" | 100 / 60 | 55 |
Q7-50-NODS/E | 1800 | 1570 | 495 | 3/4" | 1/2" | 100 / 60 | 62 |

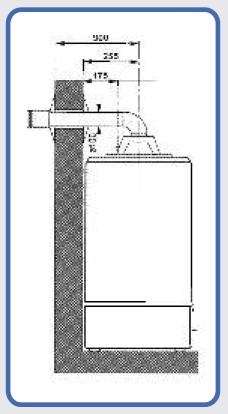

Maximal input pressure of water: 0,5 MPa Connecting pressure of gas: 1,8 - 2,5 kPa for earth gas 3,0 kPa for propane Extent of operational thermostat: 40 - 70 °C If there is a circulation in hot water distribution, it can be connected to output valve or to cold water input. Location: is possible in all rooms without any special size or ventilation, must be realized according to regulations TPG 704 01. The outfall of the flue gas installation on the outside wall (facade) must be realized according to technical regulations TPG 800 01. Water heaters are supplied with standard earth gas fitting. You should specify the propane version in your order. |
