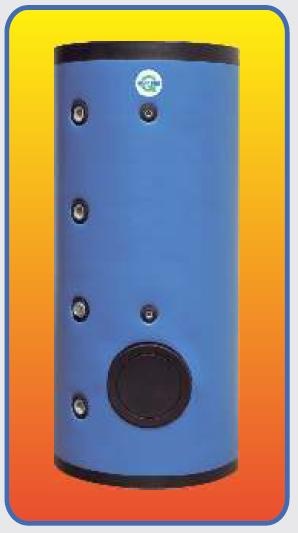

STACK WATER HEATERS WITH INDIRECT HEATING FOR ACCUMULATION OF HEATING AND HOT WATER


STACK WATER HEATERS WITH INDIRECT HEATING FOR ACCUMULATION OF HEATING AND HOT WATER
The guarantee of the tank with sintofin glaze is 3 years, with ceramic glaze 5 years.

Stack water heaters with indirect heating ZBV with volumes from 200 till 1000 litres can be used both for water heating and for heating as the common heat accumulator with usage of several sources of energy. Flanges are suitable for the installation of spiral copper exchangers and differently high placed mouths for electric heating units. Supply of a water heater with two flanges is by request.


Type of
water heater		 A B C D/H E/I F G/J Weight
(kg)

Q7-200-ZBV 600 500 1290  240 620  835 1050 83
Q7-300-ZBV 600 500 1680 240 620 1080 1450 95
Q7-400-ZBV 700 600 1670 270 650 1030 1410 115
Q7-500-ZBV 760 600 1680 270 650 1030 1410 135
Q7-800-ZBV 1000 800 1870 340 690 1050 1480 225
Q7-1000-ZBV 1000 800 2120 340 710 1110  1740 240



Hot and cold water connection
Maximal service pressure of sanitary water
Maximal temperature of sanitary water
Service temperature of sanitary water
 G5/4"
6 bar
85 °C
55 °C

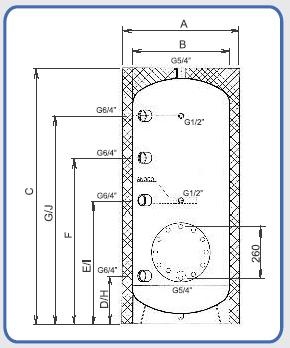

A
B
C
D
E
F
G
H
I
J
 -
-
-
-
-
-
-
-
-
-
 external diameter of water heater
tank diameter
water heater high
connection for heating unit
anode stick
connection for heating unit
connection for heating unit
cold water input
for connection of thermometer / thermostat
for connection of thermometer / thermostat
