STACK WATER HEATERS WITH INDIRECT HEATING AND TWO SPIRAL EXCHANGERS
|
|
The guarantee of the tank with sintofin glaze is 3 years, with ceramic glaze 5 years.

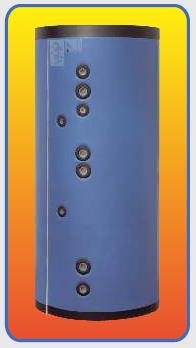

Stack water heaters with indirect heating ZJV with two spiral exchangers and volumes from 200 till 1000 litres are intended especially for places, where is for water heating available also an alternative source of energy, eg. solar collectors, electric heating unit, boilers for solid fuels or gas.
|
Type of water heater |

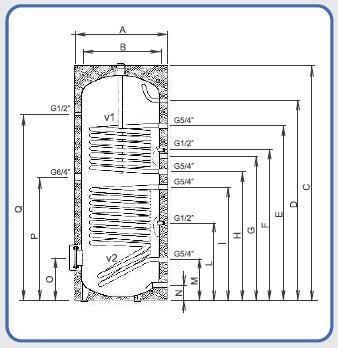

A | B | C | D | E | F | G | H | I | L | M |
Q7-200-ZDV | 600 | 500 | 1290 | 1060-1" | 970 | 888 | 861-3/4" | 765 | 675 | 452 | 265 |
Q7-300-ZDV | 600 | 500 | 1680 | 1450-1" | 1347 | 1187 | 1132-3/4" | 977 | 815 | 566 | 265 |
Q7-400-ZDV | 700 | 600 | 1670 | 1420-1" | 1305 | 1130 | 1185-3/4" | 955 | 860 | 610 | 305 |
Q7-500-ZDV | 760 | 650 | 1680 | 1420-1" | 1310 | 1135 | 1200-3/4" | 960 | 860 | 610 | 305 |
Q7-800-ZDV | 1000 | 800 | 1670 | 1585-5/4" | 1450 | 1225 | 1285-1" | 1000 | 895 | 603 | 355 |
Q7-1000-ZDV | 1000 | 800 | 2120 | 1835-5/4" | 1600 | 1375 | 1435-1" | 1150 | 1045 | 700 | 355 |
Q7-1500-ZDV | 1200 | 1000 | 2225 | 1930-6/4" | 1650 | 1446 | 1530-1" | 1300 | 1150 | 780 | 450 |
Q7-2000-ZDV | 1400 | 1200 | 2180 | 1770-6/4" | 1640 | 1435 | 1470-1" | 1290 | 1190 | 815 | 490 |
Type of water heater |
N | O | P | Q | S1 (m²) |
S2 (m²) |
l/h - kW 80/60/45 °C S1 |
l/h - kW 80/60/45 °C S2 |
Kv1 (mbar) |
Kv2 (mbar) |
Weight (kg) |
Q7-200-ZDV | 155-1" | 302 | 705 | 1035 | 0,8 | 1,5 | 520-25 | 980-40 | 35 | 78 | 105 |
Q7-300-ZDV | 155-1" | 302 | 924 | 1450 | 1,0 | 1,5 | 640-25 | 980-40 | 42 | 78 | 120 |
Q7-400-ZDV | 175-1" | 322 | 900 | 1390 | 1,0 | 1,8 | 640-25 | 1320-52 | 42 | 150 | 142 |
Q7-500-ZDV | 175-1" | 310 | 910 | 1330 | 1,0 | 2,1 | 640-25 | 1450-58 | 42 | 245 | 165 |
Q7-800-ZDV | 235-5/4" | 390 | 975 | 1470 | 1,5 | 2,5 | 980-40 | 1750-70 | 78 | 285 | 240 |
Q7-1000-ZDV | 235-5/4" | 390 | 1095 | 1620 | 1,6 | 3,4 | 1050-42 | 2430-98 | 80 | 340 | 275 |
Q7-1500-ZDV | 330-6/4" | 580 | 1250 | 1745 | 2,0 | 4,0 | 1410-57 | 2950-120 | 245 | 470 | 365 |
Q7-2000-ZDV | 370-6/4" | 620 | 1240 | 1640 | 2,0 | 4,5 | 1410-57 | 3320-135 | 245 | 485 | 435 |
Maximal service pressure of sanitary water (types Q7-200-ZDV - Q7-1000-ZDV) Maximal service pressure of sanitary water (types Q7-1500-ZDV and Q7-2000-ZDV) Maximal service pressure of primary circuit Maximal temperature of sanitary water Maximal temperature of primary circuit Service temperature of sanitary water |
10 bar 6 bar 10 bar 85 °C 95 °C 55 °C |
||||
|
