STACK WATER HEATERS WITH INDIRECT HEATING AND ONE SPIRAL EXCHANGER
 |
STACK WATER HEATERS WITH INDIRECT HEATING AND ONE SPIRAL EXCHANGER VÝMĚNÍKEM
|
|
The guarantee of the tank with sintofin glaze is 3 years, with ceramic glaze 5 years.

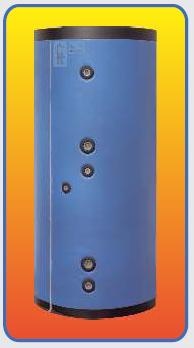

Stack water heaters with indirect heating ZJV with volumes from 150 till 2000 litres with one spiral exchanger are intended for satisfaction of still growing demand for hot water in the places, where is available only heat source for solid fuels. The water heater contains the mouth for installation of the electric heating unit and it provides water heating also during primary resource breakdown.
|
|
 |

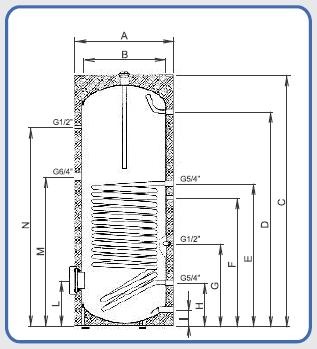

| Type of water heater |
A | B | C | D | E | F | G | H | I |
| Q7-150-ZJV | 600 | 500 | 1005 | 775-1" | 635 | 525-3/4" | 475 | 265 | 155-1" |
| Q7-200-ZJV | 600 | 500 | 1290 | 1060-1" | 675 | 785-3/4" | 559 | 265 | 155-1" |
| Q7-300-ZJV | 600 | 500 | 1680 | 1450-1" | 905 | 785-3/4" | 745 | 265 | 155-1" |
| Q7-400-ZJV | 700 | 600 | 1670 | 1420-1" | 990 | 855-3/4" | 775 | 305 | 175-1" |
| Q7-500-ZJV | 760 | 650 | 1680 | 1420-1" | 995 | 850-3/4" | 745 | 305 | 175-1" |
| Q7-800-ZJV | 1000 | 800 | 1870 | 1585-5/4" | 1045 | 895-1" | 835 | 355 | 235-5/4" |
| Q7-1000-ZJV | 1000 | 800 | 2120 | 1835-5/4" | 1180 | 1045-1" | 925 | 355 | 235-5/4" |
| Q7-1500-ZJV | 1200 | 1000 | 2225 | 1930-6/4" | 1150 | 1530-1" | 780 | 450 | 330-6/4" |
| Q7-2000-ZJV | 1400 | 1200 | 2180 | 1770-6/4" | 1190 | 1470-1" | 815 | 490 | 370-6/4" |
| Type of water heater |
L | M | N | S (m²) |
l/h - kW 80/60/45 °C |
Kv (mbar) |
Weight (kg) |
| Q7-150-ZJV | 302 | 750 | 1 | 640-25 | 42 | 75 | |
| Q7-200-ZJV | 302 | 705 | 1035 | 1,5 | 980-40 | 78 | 92 |
| Q7-300-ZJV | 302 | 930 | 1450 | 1,7 | 1250-50 | 147 | 108 |
| Q7-400-ZJV | 320 | 1025 | 1390 | 2 | 1410-57 | 245 | 130 |
| Q7-500-ZJV | 310 | 1050 | 1300 | 2,5 | 1750-70 | 288 | 155 |
| Q7-800-ZJV | 390 | 1095 | 1470 | 3,4 | 2430-98 | 340 | 226 |
| Q7-1000-ZJV | 390 | 1245 | 1620 | 4 | 2950-120 | 385 | 260 |
| Q7-1500-ZJV | 580 | 1250 | 1745 | 4 | 2950-120 | 470 | 330 |
| Q7-2000-ZJV | 620 | 1240 | 1640 | 4,5 | 3320-135 | 485 | 400 |
| Maximal service pressure of sanitary water (types Q7-150-ZJV - Q7-1000-ZJV) Maximal service pressure of sanitary water (types Q7-1500-ZJV - Q7-2000-ZJV) Maximal service pressure of primary circuit Maximal temperature of sanitary water Maximal temperature of primary circuit Service temperature of sanitary water |
10 bar 6 bar 10 bar 85 °C 95 °C 55 °C |
||||
|
|
 |
||||
