STACK WATER HEATERS WITH DIRECT HEATING
 |

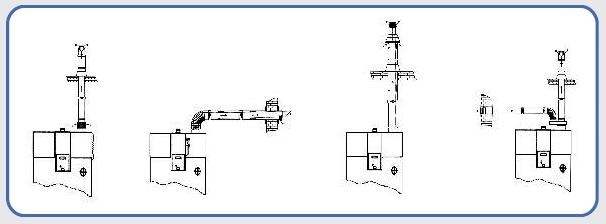

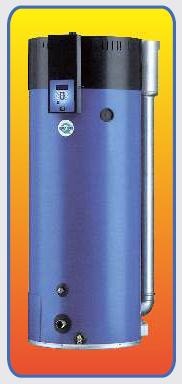

STATIONARY CONDENSING STACK WATER HEATERS WITH INTENSIVE HEATING AND THE FLUE GAS INSTALLATION
|
|
The guarantee of the tank is 3 years.
Water heaters are produced according to standards and regulations of EU and fulfil all conditions for getting the mark CE. The producer has got the certificate ISO 9002.
Water heaters are installed especially in spaces without chimney and chimney construction would be too economically or technically demanding. |
|
|
|
| Type of water heater | Tank volume (l) |
Rated power (kW) |
Rated capacity (kW) |
Time of heat Δt = 25°C (min) |
Constant power at Δt = 25°C (l / hod) |
Earth gas consumption (m³ / h) |
Propane consumption (kg / h) |
Weight (kg) |

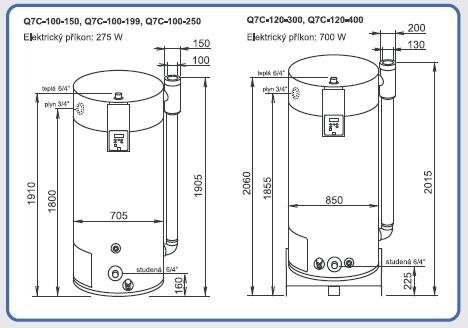

| Q7C-100-150 | 368 | 32,7 | 31,1 | 20 | 1125 | 3,30 | 2,4 | 245 |
| Q7C-100-199 | 368 | 48,8 | 47,4 | 13 | 1678 | 5,00 | 3,7 | 245 |
| Q7C-100-250 | 368 | 59,6 | 56,9 | 11 | 2050 | 6,00 | 4,3 | 245 |
| Q7C-120-300 | 460 | 81,9 | 78,0 | 10 | 2817 | 8,30 | 6,1 | 510 |
| Q7C-120-400 | 460 | 99,8 | 95,0 | 8 | 3432 | 10,10 | 7,4 | 510 |
Specifications in charts are only for your orientation, real numbers are dependent on specific conditions. Presented numbers are connected to heating without water withdrawal. Temperature limit of the regulation thermostat is ± 3 °C against the temperature setting by the temperature controller. |
Maximal input pressure of water: 0,5 MPa
Connecting pressure of gas: 1,8 - 2,5 kPa for earth gas
3,0 kPa for propane
Extent of operational thermostat: 40 - 70 °C
Covering of electric part: IP 30
Connecting tension: 230 V / 50 Hz
